HG003
Guiders

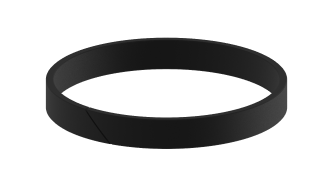

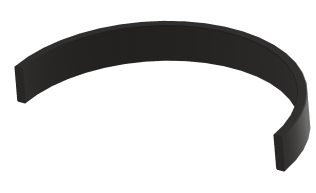

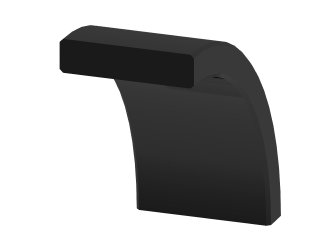

Guide strip/rings have an important place in hydraulic and pneumatic systems. If there are radial loads in the ysytem and no protections are provided, sealing elements do not function and also there may be permanent damage for the cylinder.
Our WR guide ring (wear ring) could be produced with 3 different materials.
Our WR guide ring (wear ring) could be produced with 3 different materials.
Technical Data
Temperature:
Cotton Fabric impregnated with Phenolic Resin: -35°c to +120°c
PTFE filled with 40% Bronze: -50°c to +200°c
POM: -35°c to +100°c
Speed:
5m/s
Advantages
Low friction, high efficiency
Stick-slip free starting, no sticking
Easy installation
| Sr.No | Item Description | ID (mm) | OD (mm) | H (mm) | ID x OD x H (mm) |
|---|---|---|---|---|---|
| HG003(GUIDER) | 35 | 30 | 9.8 | 35x30x9.8 | |
| HG003(GUIDER) | 40 | 35 | 9.8 | 40x35x9.8 | |
| HG003(GUIDER) | 50 | 45 | 15 | 50x45x15 | |
| HG003(GUIDER) | 60 | 55 | 15 | 60x55x15 | |
| HG003(GUIDER) | 60 | 54 | 15 | 60x54x15 | |
| HG003(GUIDER) | 65 | 60 | 15 | 65x60x15 | |
| HG003(GUIDER) | 70 | 64 | 15 | 70x64x15 | |
| HG003(GUIDER) | 70 | 64 | 20 | 70x64x20 | |
| HG003(GUIDER) | 70 | 65 | 20 | 70x65x20 | |
| HG003(GUIDER) | 75 | 69 | 15 | 75x69x15 | |
| HG003(GUIDER) | 75 | 69 | 25 | 75x69x25 | |
| HG003(GUIDER) | 75 | 70 | 25 | 75x70x25 | |
| HG003(GUIDER) | 80 | 75 | 9.5 | 80x75x9.5 | |
| HG003(GUIDER) | 80 | 75 | 20 | 80x75x20 | |
| HG003(GUIDER) | 80 | 74 | 30 | 80x74x30 | |
| HG003(GUIDER) | 80 | 74 | 20 | 80x74x20 | |
| HG003(GUIDER) | 85 | 80 | 15 | 85x80x15 | |
| HG003(GUIDER) | 85 | 80 | 20 | 85x80x20 | |
| HG003(GUIDER) | 85 | 77 | 15 | 85x77x15 | |
| HG003(GUIDER) | 85 | 79 | 15 | 85x79x15 | |
| HG003(GUIDER) | 90 | 85 | 6.1 | 90x85x6.1 | |
| HG003(GUIDER) | 90 | 81 | 12.5 | 90x81x12.5 | |
| HG003(GUIDER) | 90 | 84 | 12.5 | 90x84x12.5 | |
| HG003(GUIDER) | 90 | 84 | 25 | 90x84x25 | |
| HG003(GUIDER) | 90 | 84 | 30 | 90x84x30 | |
| HG003(GUIDER) | 90 | 85 | 15 | 90x85x15 | |
| HG003(GUIDER) | 90 | 82 | 15 | 90x82x15 | |
| HG003(GUIDER) | 95 | 90 | 6.1 | 95x90x6.1 | |
| HG003(GUIDER) | 95 | 90 | 7.9 | 95x90x7.9 | |
| HG003(GUIDER) | 95 | 90 | 9.5 | 95x90x9.5 | |
| HG003(GUIDER) | 95 | 86 | 12.5 | 95x86x12.5 | |
| HG003(GUIDER) | 95 | 87 | 15 | 95x87x15 | |
| HG003(GUIDER) | 95 | 90 | 15 | 95x90x15 | |
| HG003(GUIDER) | 95 | 89 | 20 | 95x89x20 | |
| HG003(GUIDER) | 100 | 95 | 6.1 | 100x95x6.1 | |
| HG003(GUIDER) | 100 | 95 | 7.9 | 100x95x7.9 | |
| HG003(GUIDER) | 100 | 95 | 9.5 | 100x95x9.5 | |
| HG003(GUIDER) | 90 | 84 | 20 | 90x84x20 | |
| HG003(GUIDER) | 100 | 94 | 6.1 | 100x94x6.1 | |
| HG003(GUIDER) | 110 | 104 | 6.1 | 110x104x6.1 | |
| HG003(GUIDER) | 120 | 114 | 6.1 | 120x114x6.1 | |
| HG003(GUIDER) | 100 | 95 | 15 | 100x95x15 | |
| HG003(GUIDER) | 100 | 92 | 15 | 100x92x15 | |
| HG003(GUIDER) | 100 | 91 | 12.5 | 100x91x12.5 | |
| HG003(GUIDER) | 100 | 94 | 12.5 | 100x94x12.5 | |
| HG003(GUIDER) | 100 | 94 | 25 | 100x94x25 | |
| HG003(GUIDER) | 100 | 94 | 30 | 100x94x30 | |
| HG003(GUIDER) | 100 | 94 | 22 | 100x94x22 | |
| HG003(GUIDER) | 105 | 100 | 6.1 | 105x100x6.1 | |
| HG003(GUIDER) | 105 | 100 | 9.5 | 105x100x9.5 | |
| HG003(GUIDER) | 105 | 96 | 12.5 | 105x96x12.5 | |
| HG003(GUIDER) | 105 | 100 | 15 | 105x100x15 | |
| HG003(GUIDER) | 110 | 105 | 6.1 | 110x105x6.1 | |
| HG003(GUIDER) | 110 | 105 | 7.9 | 110x105x7.9 | |
| HG003(GUIDER) | 110 | 105 | 9.5 | 110x105x9.5 | |
| HG003(GUIDER) | 110 | 101 | 12.5 | 110x101x12.5 | |
| HG003(GUIDER) | 110 | 101 | 15 | 110x101x15 | |
| HG003(GUIDER) | 110 | 102 | 15 | 110x102x15 | |
| HG003(GUIDER) | 110 | 104 | 25 | 110x104x25 | |
| HG003(GUIDER) | 110 | 104 | 22 | 110x104x22 | |
| HG003(GUIDER) | 110 | 104 | 30 | 110x104x30 | |
| HG003(GUIDER) | 115 | 110 | 6.1 | 115x110x6.1 | |
| HG003(GUIDER) | 115 | 110 | 7.9 | 115x110x7.9 | |
| HG003(GUIDER) | 115 | 110 | 9.5 | 115x110x9.5 | |
| HG003(GUIDER) | 115 | 106 | 10 | 115x106x10 | |
| HG003(GUIDER) | 115 | 110 | 15 | 115x110x15 | |
| HG003(GUIDER) | 115 | 106 | 15 | 115x106x15 | |
| HG003(GUIDER) | 115 | 107 | 15 | 115x107x15 | |
| HG003(GUIDER) | 120 | 115 | 7.9 | 120x115x7.9 | |
| HG003(GUIDER) | 120 | 115 | 9.5 | 120x115x9.5 | |
| HG003(GUIDER) | 120 | 110 | 10 | 120x110x10 | |
| HG003(GUIDER) | 120 | 111 | 15 | 120x111x15 | |
| HG003(GUIDER) | 120 | 115 | 15 | 120x115x15 | |
| HG003(GUIDER) | 120 | 114 | 15 | 120x114x15 | |
| HG003(GUIDER) | 120 | 114 | 22 | 120x114x22 | |
| HG003(GUIDER) | 120 | 111 | 10 | 120x111x10 | |
| HG003(GUIDER) | 120 | 114 | 30 | 120x114x30 | |
| HG003(GUIDER) | 120 | 112 | 15 | 120x112x15 | |
| HG003(GUIDER) | 105 | 96 | 10 | 105x96x10 | |
| HG003(GUIDER) | 95 | 86 | 10 | 95x86x10 | |
| HG003(GUIDER) | 145 | 133 | 12 | 145x133x12 | |
| HG003(GUIDER) | 150 | 138 | 12 | 150x138x12 | |
| HG003(GUIDER) | 125 | 120 | 7.9 | 125x120x7.9 | |
| HG003(GUIDER) | 125 | 120 | 9.5 | 125x120x9.5 | |
| HG003(GUIDER) | 125 | 118 | 9.7 | 125x118x9.7 | |
| HG003(GUIDER) | 125 | 119 | 9.5 | 125x119x9.5 | |
| HG003(GUIDER) | 125 | 118 | 15 | 125x118x15 | |
| HG003(GUIDER) | 125 | 119 | 15 | 125x119x15 | |
| HG003(GUIDER) | 125 | 120 | 15 | 125x120x15 | |
| HG003(GUIDER) | 125 | 120 | 25 | 125x120x25 | |
| HG003(GUIDER) | 125 | 117 | 15 | 125x117x15 | |
| HG003(GUIDER) | 130 | 125 | 7.9 | 130x125x7.9 | |
| HG003(GUIDER) | 130 | 125 | 9.5 | 130x125x9.5 | |
| HG003(GUIDER) | 130 | 124 | 9.5 | 130x124x9.5 | |
| HG003(GUIDER) | 130 | 123 | 9.5 | 130x123x9.5 | |
| HG003(GUIDER) | 130 | 125 | 15 | 130x125x15 | |
| HG003(GUIDER) | 130 | 120 | 15 | 130x120x15 | |
| HG003(GUIDER) | 130 | 123 | 30 | 130x123x30 | |
| HG003(GUIDER) | 130 | 120 | 10 | 130x120x10 | |
| HG003(GUIDER) | 130 | 123 | 15 | 130x123x15 | |
| HG003(GUIDER) | 135 | 130 | 7.9 | 135x130x7.9 | |
| HG003(GUIDER) | 135 | 130 | 9.5 | 135x130x9.5 | |
| HG003(GUIDER) | 135 | 128 | 9.5 | 135x128x9.5 | |
| HG003(GUIDER) | 135 | 125 | 10 | 135x125x10 | |
| HG003(GUIDER) | 135 | 125 | 15 | 135x125x15 | |
| HG003(GUIDER) | 135 | 128 | 15 | 135x128x15 | |
| HG003(GUIDER) | 135 | 128 | 25 | 135x128x25 | |
| HG003(GUIDER) | 140 | 135 | 7.9 | 140x135x7.9 | |
| HG003(GUIDER) | 140 | 135 | 9.5 | 140x135x9.5 | |
| HG003(GUIDER) | 140 | 135 | 15 | 140x135x15 | |
| HG003(GUIDER) | 140 | 133 | 20 | 140x133x20 | |
| HG003(GUIDER) | 140 | 133 | 9.8 | 140x133x9.8 | |
| HG003(GUIDER) | 140 | 128 | 10 | 140x128x10 | |
| HG003(GUIDER) | 140 | 128 | 12.5 | 140x128x12.5 | |
| HG003(GUIDER) | 140 | 128 | 17.5 | 140x128x17.5 | |
| HG003(GUIDER) | 140 | 128 | 15 | 140x128x15 | |
| HG003(GUIDER) | 140 | 135 | 25 | 140x135x25 | |
| HG003(GUIDER) | 140 | 133 | 35 | 140x133x35 | |
| HG003(GUIDER) | 140 | 133 | 40 | 140x133x40 | |
| HG003(GUIDER) | 145 | 140 | 7.9 | 145x140x7.9 | |
| HG003(GUIDER) | 145 | 140 | 9.5 | 145x140x9.5 | |
| HG003(GUIDER) | 145 | 138 | 9.5 | 145x138x9.5 | |
| HG003(GUIDER) | 145 | 138 | 15 | 145x138x15 | |
| HG003(GUIDER) | 145 | 138 | 20 | 145x138x20 | |
| HG003(GUIDER) | 145 | 139 | 25 | 145x139x25 | |
| HG003(GUIDER) | 150 | 143 | 40 | 150x143x40 | |
| HG003(GUIDER) | 150 | 143 | 15 | 150x143x15 | |
| HG003(GUIDER) | 150 | 143 | 45 | 150x143x45 | |
| HG003(GUIDER) | 150 | 143 | 20 | 150x143x20 | |
| HG003(GUIDER) | 150 | 145 | 15 | 150x145x15 | |
| HG003(GUIDER) | 150 | 145 | 9.5 | 150x145x9.5 | |
| HG003(GUIDER) | 150 | 145 | 7.9 | 150x145x7.9 | |
| HG003(GUIDER) | 160 | 155 | 7.9 | 160x155x7.9 | |
| HG003(GUIDER) | 160 | 155 | 9.7 | 160x155x9.7 | |
| HG003(GUIDER) | 160 | 155 | 15 | 160x155x15 | |
| HG003(GUIDER) | 160 | 148 | 15 | 160x148x15 | |
| HG003(GUIDER) | 160 | 148 | 20 | 160x148x20 | |
| HG003(GUIDER) | 160 | 153 | 20 | 160x153x20 | |
| HG003(GUIDER) | 160 | 153 | 35 | 160x153x35 | |
| HG003(GUIDER) | 160 | 153 | 40 | 160x153x40 | |
| HG003(GUIDER) | 160 | 153 | 45 | 160x153x45 | |
| HG003(GUIDER) | 165 | 157 | 15 | 165x157x15 | |
| HG003(GUIDER) | 165 | 158 | 15 | 165x158x15 | |
| HG003(GUIDER) | 170 | 165 | 9.5 | 170x165x9.5 | |
| HG003(GUIDER) | 170 | 164 | 9.5 | 170x164x9.5 | |
| HG003(GUIDER) | 170 | 164 | 15 | 170x164x15 | |
| HG003(GUIDER) | 170 | 165 | 15 | 170x165x15 | |
| HG003(GUIDER) | 170 | 162 | 15 | 170x162x15 | |
| HG003(GUIDER) | 170 | 162 | 25 | 170x162x25 | |
| HG003(GUIDER) | 170 | 162 | 45 | 170x162x45 | |
| HG003(GUIDER) | 170 | 162 | 50 | 170x162x50 | |
| HG003(GUIDER) | 170 | 158 | 20 | 170x158x20 | |
| HG003(GUIDER) | 180 | 175 | 9.5 | 180x175x9.5 | |
| HG003(GUIDER) | 180 | 175 | 15 | 180x175x15 | |
| HG003(GUIDER) | 180 | 172 | 22.5 | 180x172x22.5 | |
| HG003(GUIDER) | 180 | 172 | 45 | 180x172x45 | |
| HG003(GUIDER) | 185 | 173 | 22.5 | 185x173x22.5 | |
| HG003(GUIDER) | 185 | 178 | 15 | 185x178x15 | |
| HG003(GUIDER) | 175 | 167 | 15 | 175x167x15 | |
| HG003(GUIDER) | 190 | 184 | 15 | 190x184x15 | |
| HG003(GUIDER) | 190 | 185 | 15 | 190x185x15 | |
| HG003(GUIDER) | 200 | 195 | 9.5 | 200x195x9.5 | |
| HG003(GUIDER) | 200 | 192 | 45 | 200x192x45 | |
| HG003(GUIDER) | 225 | 217 | 50 | 225x217x50 | |
| HG003(GUIDER) | 220 | 210 | 55 | 220x210x55 | |
