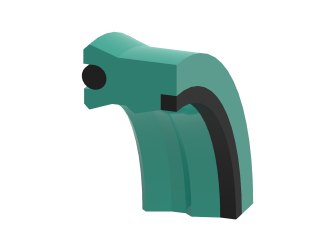

HR003
Rod Seal
Technical Data:
Pressure: 500 Bar
Temperature: -35 to +110
Speed: 0.5m/s
Media: Hydraulic oils (mineral oil-based)
Material:
Material: PU Back-up ring: POM O-ring: NBR70
Hardness: 93 2 Shore A
Color: Turquoise Back-up ring: Black O-ring: Black
Advantages:
Unusually high wear resistance
High abrasion resistance
Low compression set
Increased sealing performance at zero pressure
Easy installation
| Sr no | Item Description | ID(mm) | OD(mm) | H(mm) | ID x OD x H (mm) |
|---|---|---|---|---|---|
| 1 | HR003 | 40 | 55 | 11.4 | 40X55X11.4 |
| 2 | HR003 | 50 | 65 | 11.4 | 50X65X11.4 |
| 3 | HR003 | 56 | 71 | 11.4 | 56X71X11.4 |
| 4 | HR003 | 60 | 75 | 11.4 | 60X75X11.4 |
| 5 | HR003 | 63 | 78 | 11.4 | 63X78X11.4 |
| 6 | HR003 | 65 | 80 | 11.4 | 65X80X11.4 |
| 7 | HR003 | 70 | 85 | 11.4 | 70X85X11.4 |
| 8 | HR003 | 75 | 90 | 11.4 | 75X90X11.4 |
| 9 | HR003 | 80 | 95 | 11.4 | 80X95X11.4 |
| 10 | HR003 | 85 | 100 | 11.4 | 85X100X11.4 |
| 11 | HR003 | 85 | 100 | 12 | 85X100X12 |
| 12 | HR003 | 90 | 105 | 11.4 | 90X105X11.4 |
| 13 | HR003 | 95 | 110 | 12 | 95X110X12 |
| 14 | HR003 | 100 | 115 | 12 | 100X115X12 |
| 15 | HR003 | 100 | 120 | 13.5 | 100X120X13.5 |
| 16 | HR003 | 100 | 120 | 14.5 | 100X120X14.5 |
| 17 | HR003 | 110 | 130 | 14.5 | 110X130X14.5 |
| 18 | HR003 | 120 | 140 | 14.5 | 120X140X14.5 |
| 19 | HR003 | 125 | 145 | 14.5 | 125X145X14.5 |
| 20 | HR003 | 130 | 150 | 14.5 | 130X150X14.5 |
| 21 | HR003 | 140 | 160 | 14.5 | 140X160X14.5 |
| 22 | HR003 | 150 | 170 | 14.5 | 150X170X14.5 |
| 23 | HR003 | 160 | 180 | 14.5 | 160X180X14.5 |
| 24 | HR003 | 170 | 190 | 14.5 | 170X190X14.5 |
| 25 | HR003 | 180 | 205 | 18.2 | 180X205X18.2 |
| 26 | HR003 | 190 | 215 | 18.2 | 190X215X18.2 |
| 27 | HR003 | 200 | 230 | 22.7 | 200X230X22.7 |
| 28 | HR003 | 220 | 250 | 22.7 | 220X250X22.7 |
| 29 | HR003 | 230 | 260 | 22.7 | 230X260X22.7 |
| 30 | HR003 | 240 | 270 | 22.7 | 240X270X22.7 |
