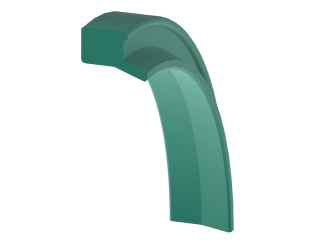

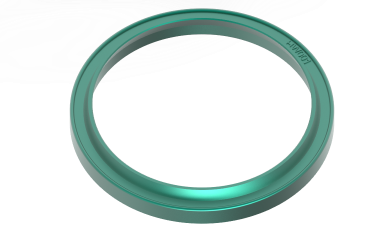

HW001
Wiper
HW001 wiper is a sealing element which usd in hydraulic applications to obstruct all kinds of negative foreign particles to go into the cylinders.
Standardized with the materials of high performance PU 93 shore A.
Standardized with the materials of high performance PU 93 shore A.
Technical Data
Temperature: -35°c to +100°c
Speed:
1m/s
Media: Hydraulic oils (mineral oil-based)
Material
Material: PU
Hardness: 93
2 Shore A
Color: Blue
Advantages
High abrasion resistance.
Widely applicable.
| Sr. No. | Item Description | ID(mm) | OD(mm) | H (mm) | ID x OD x H (mm) |
|---|---|---|---|---|---|
| 1 | HW001 | 30 | 38.6 | 5.3 | 30x38.6x5.3 |
| 2 | HW001 | 35 | 43.6 | 5.3 | 35x43.6x5.3 |
| 3 | HW001 | 40 | 48.6 | 5.3 | 40x48.6x5.3 |
| 3 | HW001 | 50 | 58.6 | 5.3 | 50x58.6x5.3 |
| 4 | HW001 | 55 | 63.5 | 5.3 | 55x63.5x5.3 |
| 5 | HW001 | 56 | 64.6 | 5.3 | 56x64.6x5.3 |
| 6 | HW001 | 60 | 68.6 | 5.3 | 60x68.6x5.3 |
| 7 | HW001 | 63 | 71.6 | 5.3 | 63x71.6x5.3 |
| 8 | HW001 | 63 | 73.6 | 5.3 | 63x73.6x5.3 |
| 9 | HW001 | 70 | 78.6 | 5.3 | 70x78.6x5.3 |
| 10 | HW001 | 70 | 80.6 | 5.3 | 70x80.6x5.3 |
| 11 | HW001 | 75 | 85 | 5.3 | 75x85x5.3 |
| 12 | HW001 | 80 | 88.6 | 5.3 | 80x88.6x5.3 |
| 13 | HW001 | 90 | 98.6 | 5.3 | 90x98.6x5.3 |
| 14 | HW001 | 100 | 112.2 | 7.1/10 | 100x112.2x7.1/10 |
| 15 | HW001 | 125 | 137.2 | 7.1/10 | 125x137.2x7.1/10 |
| 16 | HW001 | 160 | 175.2 | 10.1/14 | 160x175.2x10.1/14 |
