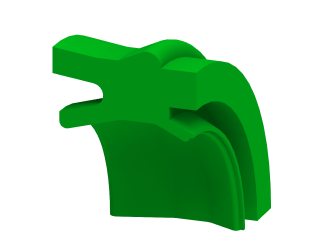

HEU
Pneumatic Seal
Produced by indection moulding technique with secial PU material, our EU PU combi seals perform an absolute sealing with its dynamic nutring sealing lips and its
joint dust (wiper) lips. It is provided to be easily assemblied into special design open seal housing. Being used safely for all pneumatic cylinders.
joint dust (wiper) lips. It is provided to be easily assemblied into special design open seal housing. Being used safely for all pneumatic cylinders.
Technical Data
Temperature: -35°c to +80°c
Speed:
1m/s
Media: Air (Lubrication free, pressurized dry air)
Material
Material: PU
Hardness: 93
2 Shore A
Color: Turquoise
Advantages
No danger of corrosion
No dust corners
Low friction values and high length of operation
Suitable for use in dry as well as oi-free air after initial assembly lubrication
| Sr.No | Item Description | ID (mm) | OD (mm) | H (mm) | ID x OD x H (mm) |
|---|---|---|---|---|---|
| HEU | 12 | 19 | 10 | 12x19x10 | |
| HEU | 12 | 20 | 10.7 | 12x20x10.7 | |
| HEU | 12 | 22 | 10.7 | 12x22x10.7 | |
| HEU | 14 | 24 | 10.7 | 14x24x10.7 | |
| HEU | 16 | 26 | 10.7 | 16x26x10.7 | |
| HEU | 18 | 26 | 10.7 | 18x26x10.7 | |
| HEU | 18 | 28 | 10.7 | 18x28x10.7 | |
| HEU | 20 | 30 | 10.7 | 20x30x10.7 | |
| HEU | 22 | 32 | 11.2 | 22x32x11.2 | |
| HEU | 25 | 35 | 11.2 | 25x35x11.2 | |
| HEU | 30 | 40 | 11.2 | 30x40x11.2 | |
| HEU | 32 | 42 | 11.2 | 32x42x11.2 | |
| HEU | 40 | 50 | 11.2 | 40x50x11.2 | |
| HEU | 45 | 55 | 12.2 | 45x55x12.2 | |
| HEU | 50 | 60 | 12.2 | 50x60x12.2 | |
| HEU | 63 | 75 | 13 | 63x75x13 |
