HW002

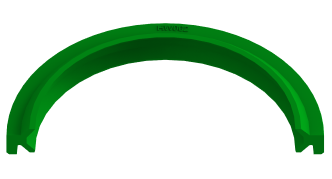

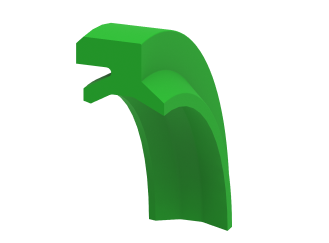

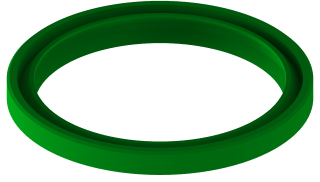

Wiper
DHS wiper is a sealing element which used in hydraulic
applications to obstruct all kinds of negative foreign particles
to go into the cylinders.
Standardized with the materials of high performance PU 93 shore A.
Standardized with the materials of high performance PU 93 shore A.
Technical Data
Temperature: -35
to +100
Speed:
1m/s
Media:
Hydraulic oils (mineral
oil-based)
Material
Material:
PU
Hardness: 93
2 Shore
A
Color: Blue / Green / Light
yellow
Advantages
High
abrasion resistance.
Widely applicable.
Easy
installation.
| Sr.No | Item Description | ID(mm) | OD(mm) | H (mm) | ID x OD x H (mm) |
|---|---|---|---|---|---|
| HW002 | 9 | 14 | 5/6.5 | 9X14X5/6.5 | |
| HW002 | 10 | 20 | 4/8 | 10X20X4/8 | |
| HW002 | 11.2 | 19.2 | 4.5/6 | 11.2X19.2X4.5/6 | |
| HW002 | 12 | 16 | 3/4 | 12X16X3/4 | |
| HW002 | 12 | 17 | 3.2/4.2 | 12x17x3.2/4.2 | |
| HW002 | 12 | 18 | 2.5/5 | 12X18X2.5/5 | |
| HW002 | 12 | 18 | 3.9/6 | 12X18X3.9/6 | |
| HW002 | 12 | 18 | 3.6/4.8 | 12X18X3.6/4.8 | |
| HW002 | 12 | 18 | 3.8/4.8 | 12X18X3.8/4.8 | |
| HW002 | 12 | 20 | 4.5/6 | 12X20X4.5/6 | |
| HW002 | 12.5 | 20.5 | 4.5/6 | 12.5X20.5X4.5/6 | |
| HW002 | 13 | 20 | 5/6.5 | 13X20X5/6.5 | |
| HW002 | 14 | 22 | 4.5/6 | 14X22X4.5/6 | |
| HW002 | 16 | 22 | 8/10 | 16X22X8/10 | |
| HW002 | 16 | 22 | 3.6/4.8 | 16X22X3.6/4.8 | |
| HW002 | 16 | 24 | 4.5/6 | 16X24X4.5/6 | |
| HW002 | 16 | 26 | 7/9.5 | 16X26X7/9.5 | |
| HW002 | 18 | 24 | 3.6/4.8 | 18X24X3.6/4.8 | |
| HW002 | 18 | 26 | 4.5/6 | 18X26X4.5/6 | |
| HW002 | 18 | 28 | 4/8 | 18X28X4/8 | |
| HW002 | 18.5 | 26 | 3.2/4 | 18.5X26X3.2/4 | |
| HW002 | 19 | 27 | 4.5/6 | 19X27X4.5/6 | |
| HW002 | 19.05 | 29.05 | 5.3/7 | 19.05X29.05X5.3/7 | |
| HW002 | 20 | 26 | 3.6/4.8 | 20x26x3.6/4.8 | |
| HW002 | 20 | 26 | 3.6/5 | 20x26x3.6/5 | |
| HW002 | 20 | 26 | 3/6 | 20X26X3/6 | |
| HW002 | 20 | 26 | 6/8 | 20X26X6/8 | |
| HW002 | 20 | 28 | 4.5/6 | 20X28X4.5/6 | |
| HW002 | 20 | 30 | 7/10 | 20X30X7/10 | |
| HW002 | 20 | 32 | 5/10 | 20X32X5/10 | |
| HW002 | 22 | 30 | 4.5/6 | 22X30X4.5/6 | |
| HW002 | 22 | 33.8 | 3/5 | 22X33.8X3/5 | |
| HW002 | 22.4 | 30.4 | 4.5/6 | 22.4X30.4X4.5/6 | |
| HW002 | 23.5 | 31.5 | 4.5/6 | 23.5X31.5X4.5/6 | |
| HW002 | 24 | 32 | 4.5/6 | 24X32X4.5/6 | |
| HW002 | 25 | 30 | 4.5/6 | 25x30x4.5/6 | |
| HW002 | 25 | 31 | 3.6/5 | 25x31x3.6/5 | |
| HW002 | 25 | 31 | 4/6 | 25x31x4/6 | |
| HW002 | 25 | 33 | 4.5/6 | 25X33X4.5/6 | |
| HW002 | 25 | 35 | 5.3/7 | 25x35x5.3/7 | |
| HW002 | 25 | 36.8 | 5/8 | 25X36.8X5/8 | |
| HW002 | 26 | 34 | 4.5/6 | 26X34X4.5/6 | |
| HW002 | 27 | 35 | 4.5/6 | 27X35X4.5/6 | |
| HW002 | 28 | 36 | 4/7 | 28x36x4/7 | |
| HW002 | 28 | 36 | 4.5/6 | 28X36X4.5/6 | |
| HW002 | 28 | 39.8 | 4.5/6 | 28X39.8X4.5/6 | |
| HW002 | 28 | 40 | 5/10 | 28X40X5/10 | |
| HW002 | 29 | 40 | 5/6.5 | 29x40x5/6.5 | |
| HW002 | 30 | 38 | 4.5/6 | 30X38X4.5/6 | |
| HW002 | 30 | 38 | 5/6.5 | 30X38X5/6.5 | |
| HW002 | 30 | 38 | 4/7 | 30X38X4/7 | |
| HW002 | 30 | 40 | 5/6.5 | 30X40X5/6.5 | |
| HW002 | 31.5 | 39.5 | 6.5 | 31.5X39.5X6.5 | |
| HW002 | 31.75 | 41.28 | 5.5/7.5 | 31.75x41.28x5.5/7.5 | |
| HW002 | 32 | 40 | 5/7.5 | 32x40x5/7.5 | |
| HW002 | 32 | 40 | 4.5/5.8 | 32X40X4.5/5.8 | |
| HW002 | 32 | 41 | 6/9 | 32X41X6/9 | |
| HW002 | 32 | 40 | 5/6.5 | 32X40X5/6.5 | |
| HW002 | 32 | 43.8 | 5/6.5 | 32x43.8x5/6.5 | |
| HW002 | 35 | 43 | 4.5/6 | 35x43x4.5/6 | |
| HW002 | 35 | 43 | 5/6.5 | 35X43X5/6.5 | |
| HW002 | 35 | 43 | 4/7 | 35X43X4/7 | |
| HW002 | 35 | 43 | 5/7 | 35x43x5/7 | |
| HW002 | 35 | 45 | 4.6/8 | 35X45X4.6/8 | |
| HW002 | 35 | 45 | 5/10 | 35x45x5/10 | |
| HW002 | 35.5 | 43.5 | 5/6.5 | 35.5X43.5X5/6.5 | |
| HW002 | 38 | 46 | 5/6.5 | 38X46X5/6.5 | |
| HW002 | 40 | 30 | 7/10 | 40X30X7/10 | |
| HW002 | 40 | 48 | 4.5/5.8 | 40X48X4.5/5.8 | |
| HW002 | 40 | 48 | 4.5/6 | 40x48x4.5/6 | |
| HW002 | 40 | 48 | 5/6.5 | 40X48X5/6.5 | |
| HW002 | 43 | 51 | 5/6.5 | 43X51X5/6.5 | |
| HW002 | 44.5 | 54 | 5.5/7.3 | 44.5x54x5.5/7.3 | |
| HW002 | 45 | 53 | 4.5/5.8 | 45X53X4.5/5.8 | |
| HW002 | 45 | 53 | 4.5/7 | 45X53X4.5/7 | |
| HW002 | 45 | 53 | 5/6.5 | 45X53X5/6.5 | |
| HW002 | 45 | 55 | 5/6.8 | 45X55X5/6.8 | |
| HW002 | 47 | 57 | 7/10 | 47X57X7/10 | |
| HW002 | 48 | 56 | 5/6.5 | 48X56X5/6.5 | |
| HW002 | 48 | 65 | 5/6.5 | 48X65X5/6.5 | |
| HW002 | 48 | 65 | 6.5/11 | 48X65X6.5/11 | |
| HW002 | 50 | 58 | 5/6.5 | 50X58X5/6.5 | |
| HW002 | 50 | 58 | 4.5/6 | 50x58x4.5/6 | |
| HW002 | 50 | 58 | 5.8/8 | 50X58X5.8/8 | |
| HW002 | 50.8 | 60.38 | 5.5/7.2 | 50.8X60.38X5.5/7.2 | |
| HW002 | 51 | 60 | 5.5/7.5 | 51x60x5.5/7.5 | |
| HW002 | 53 | 61 | 5/6.5 | 53X61X5/6.5 | |
| HW002 | 53 | 61 | 5/7 | 53X61X5/7 | |
| HW002 | 55 | 63 | 6.5 | 55X63X5/6.5 | |
| HW002 | 55 | 65 | 5/8 | 55X65X5/8 | |
| HW002 | 55 | 65 | 6/8 | 55X65X6/8 | |
| HW002 | 56 | 64 | 5/6.5 | 56X64X5/6.5 | |
| HW002 | 58 | 66 | 5/6.5 | 58X66X5/6.5 | |
| HW002 | 60 | 68 | 5/6.5 | 60X68X5/6.5 | |
| HW002 | 60 | 70 | 5.3/7.3 | 60X70X5.3/7.3 | |
| HW002 | 60 | 70 | 6/8 | 60X70X6/8 | |
| HW002 | 60 | 73 | 7/10 | 60x73x7/10 | |
| HW002 | 63 | 71 | 5/6.5 | 63X71X5/6.5 | |
| HW002 | 65 | 73 | 5/6.5 | 65X73X5/6.5 | |
| HW002 | 67 | 75 | 5/6.5 | 67X75X5/6.5 | |
| HW002 | 70 | 78 | 4/7 | 70X78X4/7 | |
| HW002 | 70 | 80 | 5/8 | 70X80X5/8 | |
| HW002 | 70 | 80 | 6/8 | 70X80X6/8 | |
| HW002 | 71 | 81 | 6/8 | 71X81X6/8 | |
| HW002 | 75 | 85 | 6/8 | 75X85X6/8 | |
| HW002 | 80 | 88 | 4/7 | 80X88X4/7 | |
| HW002 | 80 | 90 | 5/8 | 80X90X5/8 | |
| HW002 | 80 | 90 | 6/8 | 80X90X6/8 | |
| HW002 | 80 | 93 | 7/10 | 80x93x7/10 | |
| HW002 | 82.55 | 95.25 | 6.35/9.53 | 82.55X95.25X6.35/9.53 | |
| HW002 | 84 | 99 | 6.5/11 | 84x99x6.5/11 | |
| HW002 | 85 | 95 | 6/8 | 85X95X6/8 | |
| HW002 | 85 | 98 | 6/9 | 85X98X6/9 | |
| HW002 | 90 | 100 | 6/8 | 90X100X6/8 | |
| HW002 | 90 | 98 | 5/8 | 90X98X5/8 | |
| HW002 | 92 | 105 | 7/10 | 92X105X7/10 | |
| HW002 | 95 | 105 | 6/8 | 95X105X6/8 | |
| HW002 | 98 | 108 | 6/8 | 98X108X6/8 | |
| HW002 | 98 | 113 | 6/9 | 98X113X6/9 | |
| HW002 | 100 | 110 | 6/8 | 100X110X6/8 | |
| HW002 | 100 | 112 | 8/10 | 100x112x8/10 | |
| HW002 | 100 | 112 | 7/11 | 100X112X7/11 | |
| HW002 | 100 | 115 | 6/8.5 | 100X115X6/8.5 | |
| HW002 | 101.6 | 114.3 | 7/10 | 101.6X114.3X7/10 | |
| HW002 | 105 | 115 | 6/8 | 105X115X6/8 | |
| HW002 | 105 | 118 | 6/8 | 105x118x6/8 | |
| HW002 | 110 | 120 | 6/8 | 110X120X6/8 | |
| HW002 | 110 | 123 | 6/9 | 110X123X6/9 | |
| HW002 | 110 | 125 | 6/9 | 110X125X6/9 | |
| HW002 | 112 | 122 | 6/8 | 112X122X6/8 | |
| HW002 | 115 | 125 | 6/8 | 115X125X6/8 | |
| HW002 | 118 | 128 | 6/8 | 118X128X6/8 | |
| HW002 | 120 | 130 | 6/8 | 120X130X6/8 | |
| HW002 | 120 | 132.2 | 7.2/12 | 120X132.2X7.2/12 | |
| HW002 | 124 | 139 | 6/9 | 124X139X6/9 | |
| HW002 | 125 | 138 | 7/9.5 | 125X138X7/9.5 | |
| HW002 | 125 | 139.5 | 8.5/12 | 125X139.5X8.5/12 | |
| HW002 | 130 | 143 | 7/9.5 | 130X143X7/9.5 | |
| HW002 | 130 | 140 | 7/9.5 | 130X140X7/9.5 | |
| HW002 | 135 | 148 | 6/9 | 135X148X6/9 | |
| HW002 | 136 | 149 | 7/9.5 | 136X149X7/9.5 | |
| HW002 | 140 | 150 | 7/9.5 | 140X150X7/9.5 | |
| HW002 | 140 | 160 | 8/16 | 140X160X8/16 | |
| HW002 | 140 | 153 | 7/9.5 | 140X153X7/9.5 | |
| HW002 | 145 | 158 | 7/9.5 | 145X158X7/9.5 | |
| HW002 | 149 | 164 | 6/9 | 149x164x6/9 | |
| HW002 | 150 | 162 | 8/10 | 150x162x8/10 | |
| HW002 | 150 | 164 | 7/9.5 | 150X164X7/9.5 | |
| HW002 | 150 | 165 | 6/8.5 | 150x165x6/8.5 | |
| HW002 | 150 | 165 | 6/9 | 150X165X6/9 | |
| HW002 | 150 | 168.5 | 9/14 | 150X168.5X9/14 | |
| HW002 | 155 | 165 | 7/9.5 | 155X165X7/9.5 | |
| HW002 | 160 | 170 | 7/9.5 | 160X170X7/9.5 | |
| HW002 | 160 | 173 | 6/9 | 160x173x6/9 | |
| HW002 | 160 | 174 | 7/9.5 | 160X174X7/9.5 | |
| HW002 | 160 | 175 | 8.5/12 | 160X175X8.5/12 | |
| HW002 | 162 | 175 | 6/9 | 162X175X6/9 | |
| HW002 | 165 | 179 | 7/9.5 | 165X179X7/9.5 | |
| HW002 | 170 | 184 | 7/9.5 | 170X184X7/9.5 | |
| HW002 | 177 | 192 | 6/9 | 177x192x6/9 | |
| HW002 | 180 | 190 | 6.8/7.6 | 180X190X6.8/7.6 | |
| HW002 | 180 | 192 | 8/10 | 180x192x8/10 | |
| HW002 | 180 | 193 | 7/9.5 | 180x193x7/9.5 | |
| HW002 | 180 | 194 | 7/9.5 | 180X194X7/9.5 | |
| HW002 | 180 | 195 | 6/9 | 180X195X6/9 | |
| HW002 | 180 | 195 | 6/11 | 180X195X6/11 | |
| HW002 | 180 | 198.5 | 9/14 | 180X198.5X9/14 | |
| HW002 | 185 | 185 | 7/9.5 | 185X195X7/9.5 | |
| HW002 | 187 | 200; | 7/9.5 | 187X200X7/9.5 | |
| HW002 | 200 | 214 | 7/9.5& | 200X214X7/9.5 | |
| HW002 | 204 | 218 | 7/9.5 | 204X218X7/9.5 | |
| HW002 | 207 | 217 | 5/7 | 207X217X5/7 | |
| HW002 | 210 | 223 | 7.5/10.5 | 210X223X7.5/10.5 | |
| HW002 | 210 | 223 | 7/9.5 | 210X223X7/9.5 | |
| HW002 | 212 | 226 | 7/9.5 | 212X226X7/9.5 | |
| HW002 | 7/9.5 | 234 | 7/9.5 | 220X234X7/9.5 | |
| HW002 | 230 | 244 | 7/9.5 | 230X244X7/9.5 | |
| HW002 | 250 | 264 | 7/9.5 | 250X264X7/9.5 | |
| HW002 | 265 | 280 | 9.5/11.5 | 265X280X9.5/11.5 | |
| HW002 | 280 | 294 | 9/11.5 | 280X294X9/11.5 | |
| HW002 | 330 | 350 | 10/14 | 330X350X10/14 | |
| HW002 | 345 | 365 | 10/15 | 345X365X10/15 | |
| HW002 | 400 | 420 | 10/18 | 400X420X10/18 | |
| HW002 | 475 | 495 | 10/15 | 475X495X10/15 | |
| HW002 | 720 | 750 | 18/27 | 720X750X18/27 |
