GR

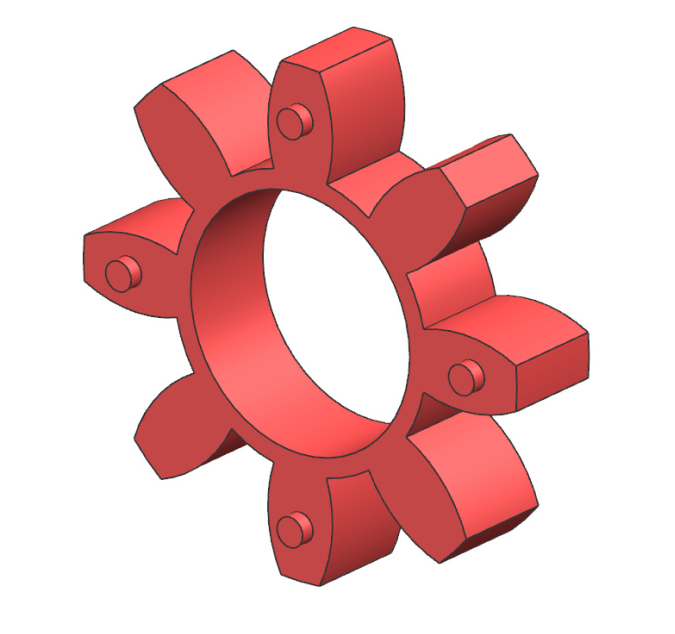

GR elastic spider is suitable for all hub machines. It's also the recommended elastomer inset for all applications in general engineering/hydraulics.
Material
Material: PU
Color: Blue / Yellow / Red
Hardness: PU Blue: 80 Shore A
PU Yellow: 92 Shore A
PU Red: 98 Shore A
Technical Data
Temperature range: -40
to +100
Torque range: 22.4 to 2500 N.M
Advantages
Extremely resistant to wear, oil, ozone and ageing
Also resistant to hydrolysis (ideal for tropical climates)
Protect the drive against dynamic overload
Good physical properties
Wide range of application
| Item | Material | OD | ID | H | QTY of Petal |
|---|---|---|---|---|---|
| GR-14 | PU | 30 | 12 | 4 | |
| GR-19 | PU | 40 | 18 | 14.5 | 6 |
| GR-24 | PU | 54 | 26 | 15.2 | 8 |
| GR-28 | PU | 65 | 30 | 19 | 8 |
| GR-38 | PU | 80 | 38 | 22 | 8 |
| GR-42 | PU | 95 | 46 | 24 | 8 |
| GR-48 | PU | 104 | 51 | 25.5 | 8 |
| GR-55 | PU | 120 | 60 | 27 | 8 |
| GR-65 | PU | 135 | 68 | 32 | 8 |
| GR-75 | PU | 160 | 80 | 37 | 10 |
| GR-90 | PU | 200 | 100 | 42 | 10 |
| GR-100 | PU | 224 | 111 | 42 | 10 |
| GR-110 | PU | 255 | 121 | 42 | 10 |
| GR-125 | PU | 292 | 148 | 42 | 10 |
| GR-140 | PU | 10 |
