HP011
Piston Seal

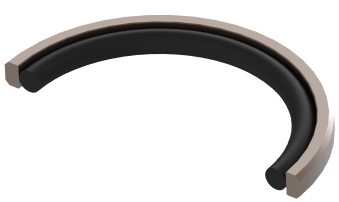

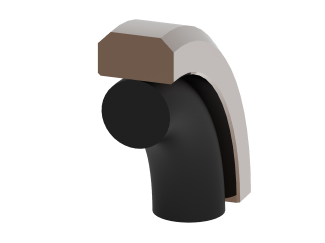

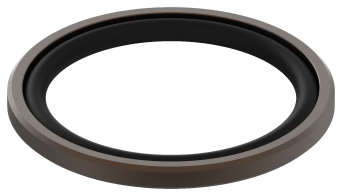

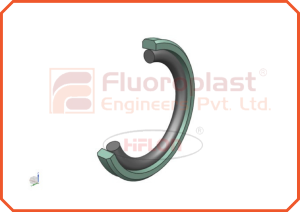

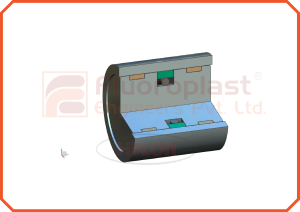

BSF piston seals/glyd ring/ DA seal have designs in 2 parts consisting of special compound bronze filled PTFE ring and O-ring used as pressure ring. This design is suitable up to a pressure of 400 bar in double acting cylinders. The advantages compared with other sealing systems are linear velocity reaching at 5 m/s, non-stick slip feature in long static use, low friction endurance, durability against high temperatures and big variety of chemical liquids, providing piston as one part and small. By using O-ring, used as pressure ring, in different combinations it is possible to solve all sorts of problems.
Technical Data
Pressure:
400 bar
Temperature: with NBR O-ring: -35°c to +105°c (bronze filled ptfe/mos 2 ptfe)
with FKM O-ring: -35°c to +200°c (bronze filled ptfe/mos 2 ptfe)
Speed: 5m/s
Media: Hydraulic oils (mineral oil-based)
Material
Material: Almost all media O-ring: NBR/FKM (bronze filled ptfe/mos 2 ptfe)
Color: Green/Brown O-ring: Black/Brown (bronze filled ptfe/mos 2 ptfe)
Advantages
High static and dynamic sealing effect
Low friction, high efficiency
Stick-slip free starting, no sticking
Easy installation

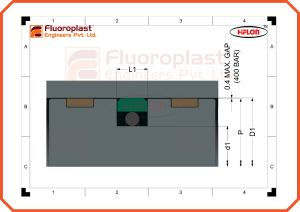

| SR NO | Item Description | Bore Dia | Groove Dia | Groove Width |
|---|---|---|---|---|
| 1 | HP011 | 9.00 | 4.10 | 2.2 |
| 2 | HP011 | 12.00 | 7.10 | 2.2 |
| 3 | HP011 | 13.00 | 8.10 | 2.2 |
| 4 | HP011 | 14.00 | 6.50 | 3.2 |
| 5 | HP011 | 15.00 | 7.50 | 3.2 |
| 6 | HP011 | 16.00 | 11.10 | 2.2 |
| 7 | HP011 | 16.00 | 8.50 | 3.2 |
| 8 | HP011 | 17.00 | 12.10 | 2.2 |
| 9 | HP011 | 18.00 | 10.50 | 3.2 |
| 10 | HP011 | 18.00 | 7.00 | 4.2 |
| 11 | HP011 | 19.00 | 11.50 | 3.2 |
| 12 | HP011 | 20.00 | 12.50 | 3.2 |
| 13 | HP011 | 20.00 | 9.00 | 4.2 |
| 14 | HP011 | 22.00 | 14.50 | 3.2 |
| 15 | HP011 | 22.00 | 11.00 | 4.2 |
| 16 | HP011 | 25.00 | 17.50 | 3.2 |
| 17 | HP011 | 25.00 | 14.00 | 4.2 |
| 18 | HP011 | 25.40 | 17.90 | 3.2 |
| 19 | HP011 | 27.00 | 19.50 | 3.2 |
| 20 | HP011 | 28.00 | 20.50 | 3.2 |
| 21 | HP011 | 28.00 | 17.00 | 4.2 |
| 22 | HP011 | 30.00 | 22.50 | 3.2 |
| 23 | HP011 | 30.00 | 19.00 | 4.2 |
| 24 | HP011 | 31.70 | 24.20 | 3.2 |
| 25 | HP011 | 32.00 | 24.50 | 3.2 |
| 26 | HP011 | 32.00 | 21.00 | 4.2 |
| 27 | HP011 | 35.00 | 27.50 | 3.2 |
| 28 | HP011 | 35.00 | 24.00 | 4.2 |
| 29 | HP011 | 35.00 | 19.50 | 6.3 |
| 30 | HP011 | 36.00 | 28.50 | 3.2 |
| 31 | HP011 | 36.00 | 25.00 | 4.2 |
| 32 | HP011 | 38.00 | 30.50 | 3.2 |
| 33 | HP011 | 38.00 | 27.00 | 4.2 |
| 34 | HP011 | 40.00 | 32.50 | 3.2 |
| 35 | HP011 | 40.00 | 29.00 | 4.2 |
| 36 | HP011 | 40.00 | 24.50 | 6.3 |
| 37 | HP011 | 42.00 | 34.50 | 3.2 |
| 38 | HP011 | 42.00 | 31.00 | 4.2 |
| 39 | HP011 | 43.00 | 27.50 | 6.3 |
| 40 | HP011 | 44.45 | 36.95 | 3.2 |
| 41 | HP011 | 45.00 | 37.50 | 3.2 |
| 42 | HP011 | 45.00 | 34.00 | 4.2 |
| 43 | HP011 | 45.00 | 29.50 | 6.3 |
| 44 | HP011 | 48.00 | 40.50 | 3.2 |
| 45 | HP011 | 48.00 | 37.00 | 4.2 |
| 46 | HP011 | 48.00 | 32.50 | 6.3 |
| 47 | HP011 | 50.00 | 42.50 | 3.2 |
| 48 | HP011 | 50.00 | 39.00 | 4.2 |
| 49 | HP011 | 50.00 | 34.50 | 6.3 |
| 50 | HP011 | 52.00 | 41.00 | 4.2 |
| 51 | HP011 | 52.00 | 36.50 | 6.3 |
| 52 | HP011 | 53.00 | 37.50 | 6.3 |
| 53 | HP011 | 55.00 | 44.00 | 4.2 |
| 54 | HP011 | 55.00 | 39.50 | 6.3 |
| 55 | HP011 | 56.00 | 45.00 | 4.2 |
| 56 | HP011 | 56.00 | 40.50 | 6.3 |
| 57 | HP011 | 57.10 | 46.10 | 4.2 |
| 58 | HP011 | 58.00 | 47.00 | 4.2 |
| 59 | HP011 | 60.00 | 49.00 | 4.2 |
| 60 | HP011 | 60.00 | 44.50 | 6.3 |
| 61 | HP011 | 63.00 | 52.00 | 4.2 |
| 62 | HP011 | 63.00 | 47.50 | 6.3 |
| 63 | HP011 | 65.00 | 54.00 | 4.2 |
| 64 | HP011 | 65.00 | 49.50 | 6.3 |
| 65 | HP011 | 68.00 | 57.00 | 4.2 |
| 66 | HP011 | 68.00 | 52.50 | 6.3 |
| 67 | HP011 | 69.85 | 58.85 | 4.2 |
| 68 | HP011 | 70.00 | 59.00 | 4.2 |
| 69 | HP011 | 70.00 | 54.50 | 6.3 |
| 70 | HP011 | 73.00 | 62.00 | 4.2 |
| 71 | HP011 | 73.00 | 57.50 | 6.3 |
| 72 | HP011 | 75.00 | 64.00 | 4.2 |
| 73 | HP011 | 75.00 | 59.50 | 6.3 |
| 74 | HP011 | 76.00 | 65.00 | 4.2 |
| 75 | HP011 | 76.00 | 60.50 | 6.3 |
| 76 | HP011 | 76.20 | 65.20 | 4.2 |
| 77 | HP011 | 78.00 | 62.50 | 6.3 |
| 78 | HP011 | 78.00 | 57.00 | 8.1 |
| 79 | HP011 | 80.00 | 69.00 | 4.2 |
| 80 | HP011 | 80.00 | 64.50 | 6.3 |
| 81 | HP011 | 80.00 | 59.00 | 8.1 |
| 82 | HP011 | 85.00 | 74.00 | 4.2 |
| 83 | HP011 | 85.00 | 69.50 | 6.3 |
| 84 | HP011 | 88.90 | 73.40 | 6.3 |
| 85 | HP011 | 90.00 | 79.00 | 4.2 |
| 86 | HP011 | 90.00 | 74.50 | 6.3 |
| 87 | HP011 | 90.00 | 69.00 | 8.1 |
| 88 | HP011 | 93.00 | 82.00 | 4.2 |
| 89 | HP011 | 95.00 | 84.00 | 4.2 |
| 90 | HP011 | 95.00 | 79.50 | 6.3 |
| 91 | HP011 | 95.00 | 74.00 | 8.1 |
| 92 | HP011 | 100.00 | 89.00 | 4.2 |
| 93 | HP011 | 100.00 | 84.50 | 6.3 |
| 94 | HP011 | 100.00 | 79.00 | 8.1 |
| 95 | HP011 | 101.60 | 86.10 | 6.3 |
| 96 | HP011 | 105.00 | 94.00 | 4.2 |
| 97 | HP011 | 105.00 | 89.50 | 6.3 |
| 98 | HP011 | 105.00 | 84.00 | 8.1 |
| 99 | HP011 | 105.00 | 84.00 | 8.1 |
| 100 | HP011 | 110.00 | 99.00 | 4.2 |
| 101 | HP011 | 110.00 | 94.50 | 6.3 |
| 102 | HP011 | 110.00 | 89.00 | 8.1 |
| 103 | HP011 | 115.00 | 104.00 | 4.2 |
| 104 | HP011 | 115.00 | 99.50 | 6.3 |
| 105 | HP011 | 115.00 | 94.00 | 8.1 |
| 106 | HP011 | 120.00 | 109.00 | 4.2 |
| 107 | HP011 | 120.00 | 104.50 | 6.3 |
| 108 | HP011 | 120.00 | 99.00 | 8.1 |
| 109 | HP011 | 125.00 | 114.00 | 4.2 |
| 110 | HP011 | 125.00 | 109.50 | 6.3 |
| 111 | HP011 | 125.00 | 104.00 | 8.1 |
| 112 | HP011 | 127.00 | 111.50 | 6.3 |
| 113 | HP011 | 130.00 | 114.50 | 6.3 |
| 114 | HP011 | 130.00 | 109.00 | 8.1 |
| 115 | HP011 | 135.00 | 119.50 | 6.3 |
| 116 | HP011 | 135.00 | 114.00 | 8.1 |
| 117 | HP011 | 140.00 | 129.00 | 4.2 |
| 118 | HP011 | 140.00 | 124.50 | 6.3 |
| 119 | HP011 | 140.00 | 119.00 | 8.1 |
| 120 | HP011 | 145.00 | 129.50 | 6.3 |
| 121 | HP011 | 145.00 | 124.00 | 8.1 |
| 122 | HP011 | 150.00 | 134.50 | 6.3 |
| 123 | HP011 | 150.00 | 129.00 | 8.1 |
| 124 | HP011 | 152.40 | 131.40 | 8.1 |
| 125 | HP011 | 155.00 | 139.50 | 6.3 |
| 126 | HP011 | 155.00 | 134.00 | 8.1 |
| 127 | HP011 | 160.00 | 144.50 | 6.3 |
| 128 | HP011 | 160.00 | 139.00 | 8.1 |
| 129 | HP011 | 165.00 | 149.50 | 6.3 |
| 130 | HP011 | 165.00 | 144.00 | 8.1 |
| 131 | HP011 | 170.00 | 154.50 | 6.3 |
| 132 | HP011 | 170.00 | 149.00 | 8.1 |
| 133 | HP011 | 175.00 | 159.50 | 6.3 |
| 134 | HP011 | 175.00 | 154.00 | 8.1 |
| 135 | HP011 | 180.00 | 164.50 | 6.3 |
| 136 | HP011 | 180.00 | 159.00 | 8.1 |
| 137 | HP011 | 185.00 | 169.50 | 6.3 |
| 138 | HP011 | 185.00 | 164.00 | 8.1 |
| 139 | HP011 | 190.00 | 174.50 | 6.3 |
| 140 | HP011 | 190.00 | 169.00 | 8.1 |
| 141 | HP011 | 195.00 | 179.50 | 6.3 |
| 142 | HP011 | 195.00 | 174.00 | 8.1 |
| 143 | HP011 | 200.00 | 184.50 | 6.3 |
| 144 | HP011 | 200.00 | 179.00 | 8.1 |
| 145 | HP011 | 205.00 | 189.50 | 6.3 |
| 146 | HP011 | 205.00 | 184.00 | 8.1 |
| 147 | HP011 | 206.00 | 190.50 | 6.3 |
| 148 | HP011 | 210.00 | 189.00 | 8.1 |
| 149 | HP011 | 215.00 | 194.00 | 8.1 |
| 150 | HP011 | 220.00 | 199.00 | 8.1 |
| 151 | HP011 | 225.00 | 209.50 | 6.3 |
| 152 | HP011 | 225.00 | 204.00 | 8.1 |
| 153 | HP011 | 230.00 | 214.50 | 6.3 |
| 154 | HP011 | 230.00 | 209.00 | 8.1 |
| 155 | HP011 | 235.00 | 214.00 | 8.1 |
| 156 | HP011 | 240.00 | 219.00 | 8.1 |
| 157 | HP011 | 245.00 | 224.00 | 8.1 |
| 158 | HP011 | 250.00 | 229.00 | 8.1 |
| 159 | HP011 | 255.00 | 234.00 | 8.1 |
| 160 | HP011 | 260.00 | 239.00 | 8.1 |
| 161 | HP011 | 265.00 | 244.00 | 8.1 |
| 162 | HP011 | 270.00 | 254.50 | 6.3 |
| 163 | HP011 | 270.00 | 249.00 | 8.1 |
| 164 | HP011 | 275.00 | 254.00 | 8.1 |
| 165 | HP011 | 280.00 | 259.00 | 8.1 |
| 166 | HP011 | 285.00 | 264.00 | 8.1 |
| 167 | HP011 | 290.00 | 269.00 | 8.1 |
| 168 | HP011 | 295.00 | 274.00 | 8.1 |
| 169 | HP011 | 300.00 | 279.00 | 8.1 |
| 170 | HP011 | 305.00 | 280.50 | 8.1 |
| 171 | HP011 | 305.00 | 284.00 | 8.1 |
| 172 | HP011 | 310.00 | 285.50 | 8.1 |
| 173 | HP011 | 310.00 | 289.00 | 8.1 |
| 174 | HP011 | 315.00 | 294.00 | 8.1 |
| 175 | HP011 | 320.00 | 295.50 | 8.1 |
| 176 | HP011 | 320.00 | 299.00 | 8.1 |
| 177 | HP011 | 325.00 | 300.50 | 8.1 |
| 178 | HP011 | 330.00 | 305.50 | 8.1 |
| 179 | HP011 | 335.00 | 310.50 | 8.1 |
| 180 | HP011 | 340.00 | 315.50 | 8.1 |
| 181 | HP011 | 345.00 | 320.50 | 8.1 |
| 182 | HP011 | 350.00 | 325.50 | 8.1 |
| 183 | HP011 | 355.00 | 330.50 | 8.1 |
| 184 | HP011 | 360.00 | 335.50 | 8.1 |
| 185 | HP011 | 365.00 | 340.50 | 8.1 |
| 186 | HP011 | 370.00 | 345.50 | 8.1 |
| 187 | HP011 | 375.00 | 350.50 | 8.1 |
| 188 | HP011 | 380.00 | 355.50 | 8.1 |
| 189 | HP011 | 385.00 | 360.50 | 8.1 |
| 190 | HP011 | 390.00 | 365.50 | 8.1 |
| 191 | HP011 | 395.00 | 370.50 | 8.1 |
| 192 | HP011 | 400.00 | 375.50 | 8.1 |
| 193 | HP011 | 405.00 | 380.50 | 8.1 |
| 194 | HP011 | 410.00 | 385.50 | 8.1 |
| 195 | HP011 | 415.00 | 390.50 | 8.1 |
| 196 | HP011 | 420.00 | 395.50 | 8.1 |
| 197 | HP011 | 425.00 | 400.50 | 8.1 |
| 198 | HP011 | 430.00 | 405.50 | 8.1 |
| 199 | HP011 | 435.00 | 410.50 | 8.1 |
| 200 | HP011 | 440.00 | 415.50 | 8.1 |
| 201 | HP011 | 445.00 | 420.50 | 8.1 |
| 202 | HP011 | 450.00 | 425.50 | 8.1 |
| 203 | HP011 | 455.00 | 430.50 | 8.1 |
| 204 | HP011 | 460.00 | 435.50 | 8.1 |
| 205 | HP011 | 470.00 | 445.50 | 8.1 |
| 206 | HP011 | 480.00 | 455.50 | 8.1 |
| 207 | HP011 | 485.00 | 460.50 | 8.1 |
| 208 | HP011 | 490.00 | 465.50 | 8.1 |
| 209 | HP011 | 500.00 | 475.50 | 8.1 |
| 210 | HP011 | 505.00 | 480.50 | 8.1 |
| 211 | HP011 | 510.00 | 485.50 | 8.1 |
| 212 | HP011 | 520.00 | 495.50 | 8.1 |
| 213 | HP011 | 530.00 | 505.50 | 8.1 |
| 214 | HP011 | 540.00 | 515.50 | 8.1 |
| 215 | HP011 | 545.00 | 520.50 | 8.1 |
| 216 | HP011 | 550.00 | 525.50 | 8.1 |
| 217 | HP011 | 560.00 | 535.50 | 8.1 |
| 218 | HP011 | 570.00 | 545.50 | 8.1 |
| 219 | HP011 | 580.00 | 555.50 | 8.1 |
| 220 | HP011 | 590.00 | 565.50 | 8.1 |
| 221 | HP011 | 590.00 | 565.50 | 8.1 |
| 222 | HP011 | 600.00 | 575.50 | 8.1 |
| 223 | HP011 | 625.00 | 600.50 | 8.1 |
| 224 | HP011 | 645.00 | 620.50 | 8.1 |
| 225 | HP011 | 653.00 | 628.50 | 8.1 |
| 226 | HP011 | 660.00 | 635.50 | 8.1 |
| 227 | HP011 | 700.00 | 675.50 | 8.1 |
| 233 | HP011 | 700.00 | 672.00 | 9.5 |
| 228 | HP011 | 750.00 | 722.00 | 9.5 |
| 229 | HP011 | 780.00 | 755.50 | 8.1 |
| 232 | HP011 | 780.00 | 752.00 | 9.5 |
| 230 | HP011 | 800.00 | 775.50 | 8.1 |
| 231 | HP011 | 800.00 | 772.00 | 9.5 |
