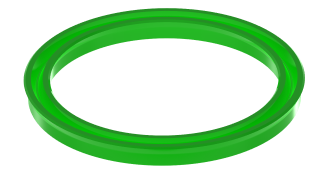

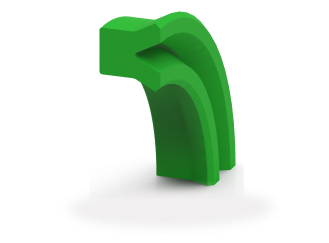

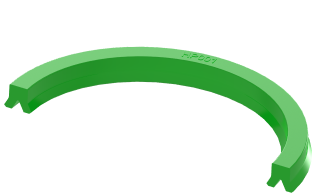

HP001
Piston & Rod Seal
Having been used very widerly in hydraulic cylinders, UHS can be used for piston and rod applications because of having the height of both sealing lips equal
Standardized with the materials of high performance PU 93 shore A.
Standardized with the materials of high performance PU 93 shore A.
Technical Data
Pressure:
400 bar
Temperature: -35°c to +100°c
Speed: 0.5m/s
Media: Hydraulic oils (mineral oil-based)
Material
Material: PU
Hardness: 93
2 Shore A
Color: Blue / Green / Light yellow
Advantages
High sealing performance under low pressure
Not suitable for sealing singly
Easy installation
| Sr.No. | Item Description | ID (mm) | OD (mm) | H (mm) | ID x OD x H (mm) |
|---|---|---|---|---|---|
| HP001 | 6 | 12 | 5 | 6X12X5 | |
| HP001 | 11.2 | 19.2 | 5 | 11.2X19.2X5 | |
| HP001 | 10 | 20 | 6 | 10X20X6 | |
| HP001 | 12 | 20 | 5 | 12X20X5 | |
| HP001 | 12.5 | 20 | 5 | 12.5X20X5 | |
| HP001 | 14 | 22 | 5 | 14X22X5 | |
| HP001 | 15 | 23 | 5 | 15X23X5 | |
| HP001 | 16 | 24 | 5 | 16X24X5 | |
| HP001 | 17 | 27 | 5 | 17X27X5 | |
| HP001 | 18 | 25 | 5 | 18X25X5 | |
| HP001 | 18 | 26 | 5 | 18X26X5 | |
| HP001 | 19 | 24 | 5 | 19X24X5 | |
| HP001 | 19 | 25 | 5 | 19X25X5 | |
| HP001 | 19 | 26 | 6.7 | 19X26X6.7 | |
| HP001 | 20 | 26 | 3.5 | 20X26X3.5 | |
| HP001 | 20 | 26 | 5 | 20X26X5 | |
| HP001 | 20 | 27 | 6 | 20X27X6 | |
| HP001 | 20 | 28 | 5 | 20X28X5 | |
| HP001 | 21 | 26.5 | 6 | 21X26.5X6 | |
| HP001 | 22.4 | 30 | 5 | 22.4X30X5 | |
| HP001 | 23.5 | 31.5 | 5 | 23.5X31.5X5 | |
| HP001 | 25 | 33 | 5 | 25X33X5 | |
| HP001 | 26 | 33 | 5 | 26X33X5 | |
| HP001 | 26 | 36 | 5 | 26X36X5 | |
| HP001 | 27 | 35 | 5 | 27X35X5 | |
| HP001 | 28 | 35.5 | 5 | 28X35.5X5 | |
| HP001 | 30 | 40 | 6 | 30X40X6 | |
| HP001 | 31.5 | 41.5 | 6 | 31.5X41.5X6 | |
| HP001 | 32 | 42 | 6 | 32X42X6 | |
| HP001 | 35 | 45 | 6 | 35X45X6 | |
| HP001 | 35 | 45 | 7 | 35X45X7 | |
| HP001 | 35.5 | 45 | 6 | 35.5X45X6 | |
| HP001 | 36 | 46 | 9 | 36X46X9 | |
| HP001 | 38 | 46 | 6 | 38X46X6 | |
| HP001 | 38 | 48 | 6 | 38X48X6 | |
| HP001 | 40 | 50 | 6 | 40X50X6 | |
| HP001 | 45 | 55 | 6 | 45X55X6 | |
| HP001 | 45 | 56 | 7 | 45X56X7 | |
| HP001 | 47 | 57 | 6 | 47X57X6 | |
| HP001 | 48 | 58 | 6 | 48X58X6 | |
| HP001 | 50 | 60 | 6 | 50X60X6 | |
| HP001 | 50 | 60 | 7 | 50X60X7 | |
| HP001 | 53 | 63 | 6 | 53X63X6 | |
| HP001 | 55 | 65 | 6 | 55X65X6 | |
| HP001 | 56 | 66 | 6 | 56X66X6 | |
| HP001 | 57 | 65 | 5 | 57X65X5 | |
| HP001 | 58 | 68 | 6 | 58X68X6 | |
| HP001 | 60 | 70 | 6 | 60X70X6 | |
| HP001 | 60 | 71 | 7 | 60X71X7 | |
| HP001 | 61 | 71 | 6 | 61X71X6 | |
| HP001 | 63 | 73 | 6 | 63X73X6 | |
| HP001 | 65 | 75 | 6 | 65X75X6 | |
| HP001 | 66 | 76 | 6 | 66X76X6 | |
| HP001 | 67 | 77 | 6 | 67X77X6 | |
| HP001 | 70 | 78 | 8 | 70X78X8 | |
| HP001 | 70 | 80 | 6 | 70X80X6 | |
| HP001 | 71 | 80 | 6 | 71X80X6 | |
| HP001 | 75 | 85 | 6 | 75X85X6 | |
| HP001 | 76 | 86 | 6 | 76X86X6 | |
| HP001 | 80 | 90 | 6 | 80X90X6 | |
| HP001 | 83.5 | 93.5 | 6 | 83.5X93.5X6 | |
| HP001 | 85 | 100 | 9 | 85X100X9 | |
| HP001 | 86 | 96 | 6 | 86X96X6 | |
| HP001 | 88 | 98 | 6 | 88X98X6 | |
| HP001 | 90 | 105 | 9 | 90X105X9 | |
| HP001 | 95 | 110 | 9 | 95X110X9 | |
| HP001 | 98 | 112 | 9 | 98X112X9 | |
| HP001 | 100 | 115 | 9 | 100X115X9 | |
| HP001 | 105 | 120 | 9 | 105X120X9 | |
| HP001 | 106 | 120 | 8.5 | 106X120X8.5 | |
| HP001 | 110 | 125 | 9 | 110X125X9 | |
| HP001 | 112 | 125 | 9 | 112X125X9 | |
| HP001 | 115 | 130 | 9 | 115X130X9 | |
| HP001 | 120 | 135 | 9 | 120X135X9 | |
| HP001 | 122 | 135 | 9 | 122X135X9 | |
| HP001 | 125 | 140 | 9 | 125X140X9 | |
| HP001 | 130 | 145 | 9 | 130X145X9 | |
| HP001 | 136 | 150 | 9 | 136X150X9 | |
| HP001 | 140 | 155 | 9 | 140X155X9 | |
| HP001 | 145 | 160 | 9 | 145X160X9 | |
| HP001 | 150 | 165 | 9 | 150X165X9 | |
| HP001 | 160 | 175 | 9 | 160X175X9 | |
| HP001 | 165 | 180 | 9 | 165X180X9 | |
| HP001 | 180 | 200 | 12 | 180X200X12 | |
| HP001 | 180 | 200 | 12.5 | 180X200X12.5 | |
| HP001 | 200 | 220 | 12 | 200X220X12 | |
| HP001 | 204 | 224 | 12 | 204X224X12 | |
| HP001 | 230 | 250 | 12 | 230X250X12 |
