HP021
Piston Seal

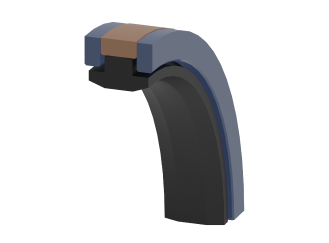

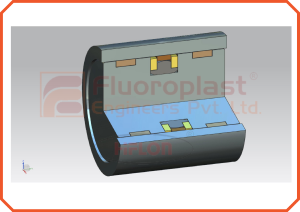

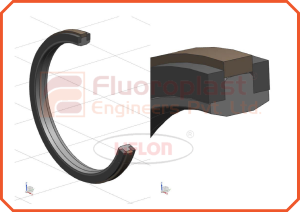

SPGW heavy duty piston seals are designed for double acting hydraulic cylinders used in heavy duty applications. They consist of a specialized bronze/mos2 ptfe ring, 2 specially fabricated polyamide support rings and high pressure nbr ring. Some advantages are its simple design, high linear velocity values, non-bonding property on the surface in long static cases, low friction, wider permissible gaps and long life service. Therefore, SPGW is very suitable for heavy duty applications.
Technical Data
Pressure:
400 Bar
Temperature: with NBR Square-ring: -35°c to +105°c
Speed: 1.5m/s
Media: Hydraulic oils (mineral oil-based)
Material
Material: Profile seal: PTFE with Bronze / Back-up ring: POM / Pressure ring: NBR
Color: Profile seal: Green/Brown / Back-up ring: Black / Pressure ring: Black
Advantages
High sliding speed
Low friction, free of stick-slip
Simple groove design
Increase clearance possible

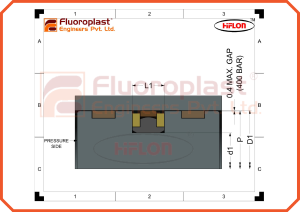

| SR.NO | DIS | BORE DIA | GROOVE DIA | GROOVE WIDTH |
|---|---|---|---|---|
| 1 | SPGW | 50 | 36 | 8.5 |
| 2 | SPGW | 55 | 41 | 8.5 |
| 3 | SPGW | 60 | 46 | 8.5 |
| 4 | SPGW | 63 | 48 | 10.5 |
| 5 | SPGW | 65 | 50 | 10.5 |
| 6 | SPGW | 70 | 55 | 10.5 |
| 7 | SPGW | 75 | 60 | 10.5 |
| 8 | SPGW | 80 | 65 | 10.5 |
| 9 | SPGW | 85 | 70 | 10.5 |
| 10 | SPGW | 90 | 75 | 10.5 |
| 11 | SPGW | 95 | 80 | 10.5 |
| 12 | SPGW | 100 | 85 | 12 |
| 13 | SPGW | 105 | 90 | 12 |
| 14 | SPGW | 110 | 95 | 12 |
| 15 | SPGW | 115 | 100 | 12 |
| 16 | SPGW | 120 | 105 | 12 |
| 17 | SPGW | 125 | 102 | 15.5 |
| 18 | SPGW | 130 | 107 | 15.5 |
| 19 | SPGW | 135 | 112 | 11.5 |
| 20 | SPGW | 140 | 117 | 15.5 |
| 21 | SPGW | 145 | 122 | 15.5 |
| 22 | SPGW | 150 | 127 | 15.5 |
| 23 | SPGW | 155 | 132 | 15.5 |
| 24 | SPGW | 160 | 137 | 15.5 |
| 25 | SPGW | 165 | 142 | 15.5 |
| 26 | SPGW | 170 | 147 | 15.5 |
| 27 | SPGW | 175 | 152 | 15.5 |
| 28 | SPGW | 180 | 157 | 15.5 |
| 29 | SPGW | 185 | 162 | 15.5 |
| 30 | SPGW | 190 | 167 | 15.5 |
| 31 | SPGW | 195 | 172 | 15.5 |
| 32 | SPGW | 200 | 177 | 15.5 |
| 33 | SPGW | 210 | 187 | 15.5 |
| 34 | SPGW | 220 | 197 | 15.5 |
| 35 | SPGW | 225 | 202 | 15.5 |
| 36 | SPGW | 230 | 207 | 15.5 |
| 37 | SPGW | 240 | 217 | 15.5 |
| 38 | SPGW | 250 | 222 | 17 |
| 39 | SPGW | 260 | 232 | 17 |
| 40 | SPGW | 270 | 242 | 17 |
| 41 | SPGW | 280 | 252 | 17 |
| 42 | SPGW | 290 | 262 | 17 |
| 43 | SPGW | 300 | 272 | 17 |
